How to Build a Field Fence with Barbed Wire Top for Cattle

A well built field fence with a barbed wire top keeps cattle contained, reduces risk, and meets Southeastern regulations. This guide covers materials, layouts, legal basics, and the core build steps so you can install a durable system that fits Florida, Alabama, and Georgia conditions.

Plan for Local Conditions

Walk the fence path and mark corners, gates, and low spots that collect water. Note soil types along the route. Clay holds posts well but heaves with moisture. Coastal sand shifts and settles. Plan post depths, bracing, and equipment access before you buy materials.

Materials That Withstand Humidity

A woven wire body plus a barbed wire top is a proven cattle setup. Choose components that resist corrosion and maintain tension over time.

Woven wire specifications

Use 12.5 gauge high tensile woven wire with Class 3 galvanization. The heavier zinc coating slows rust in humid coastal air and morning dew. Pick a knot style and opening size that matches your herd. Standard vertical spacing works for beef cattle. If you are calving, consider tighter bottom openings.

Barbed wire top

Add one or two strands of 14 gauge high tensile barbed wire above the fabric. These strands discourage leaning and reaching. Place them to close the gap above the woven wire and increase overall height without creating openings a calf could test.

Posts, Footings, and Spacing

Posts carry every load. In clay around Montgomery and Dothan, .60 CCA treated wood posts offer strength and longevity. Set posts 3.5 to 5 feet deep and tamp thoroughly. In sandy areas near Pensacola and Bonifay, go deeper, add gravel for drainage, or use concrete on corners and gates. For high tensile builds, line posts can often be spaced up to 20 feet to control costs without losing performance.

Know the Rules in Florida, Alabama, and Georgia

Florida is a closed range state. If animals escape and cause damage, owners are liable. Secure fencing is a legal obligation, not only a best practice.

Alabama defines lawful fence parameters, including heights. A common, compliant layout uses 36 inches of woven wire topped with barbed strands to reach about 48 inches National Agricultural Law Center, 2025. In Georgia, many producers follow NRCS specifications to qualify for EQIP cost share. Confirm the practice standard in your county before construction.

Installing Line Posts and Unrolling the Woven Wire

With your corners securely in place, you can install your line posts. Drive T-posts or wood posts along your marked fence line at your predetermined spacing. Once the posts are in, carefully unroll the woven wire field fence along the outside of the fence line and securely attach the end to your starting corner post.

Stretching and Splicing Your Woven Wire Fence

Proper tension is what makes a high-tensile fence effective. Use a come-along or a dedicated fence stretcher to pull the wire tight. The goal is to remove about half of the natural crimp or “give” from the horizontal wires. This leaves enough flexibility for the fence to handle temperature changes and impacts without breaking.

If your fence run is longer than a single roll of wire, you will need to splice rolls together. Use high-quality splice tools and sleeves designed for high-tensile wire to ensure the connection is as strong as the wire itself.

Adding the Barbed Wire Top & Final Steps

The final steps involve adding your top deterrent strands and ensuring everything is secure. This last phase completes your professional-grade cattle containment system and prepares it for years of service on your farm.

Attaching the Barbed Wire Cattle Fence Top Strands

With the woven wire stretched and stapled to the posts, it’s time to add the top strands. Roll out and tension the barbed wire cattle fence strands one at a time above the woven wire. Attach them to your posts using fence staples, making sure not to staple them so tightly that they cannot move slightly with temperature changes. Typically, one or two strands are sufficient.

Build It Right, Step by Step

Lay out and call 811. Clear the line, stake corners, ends, and gates, then have utilities marked before you dig.

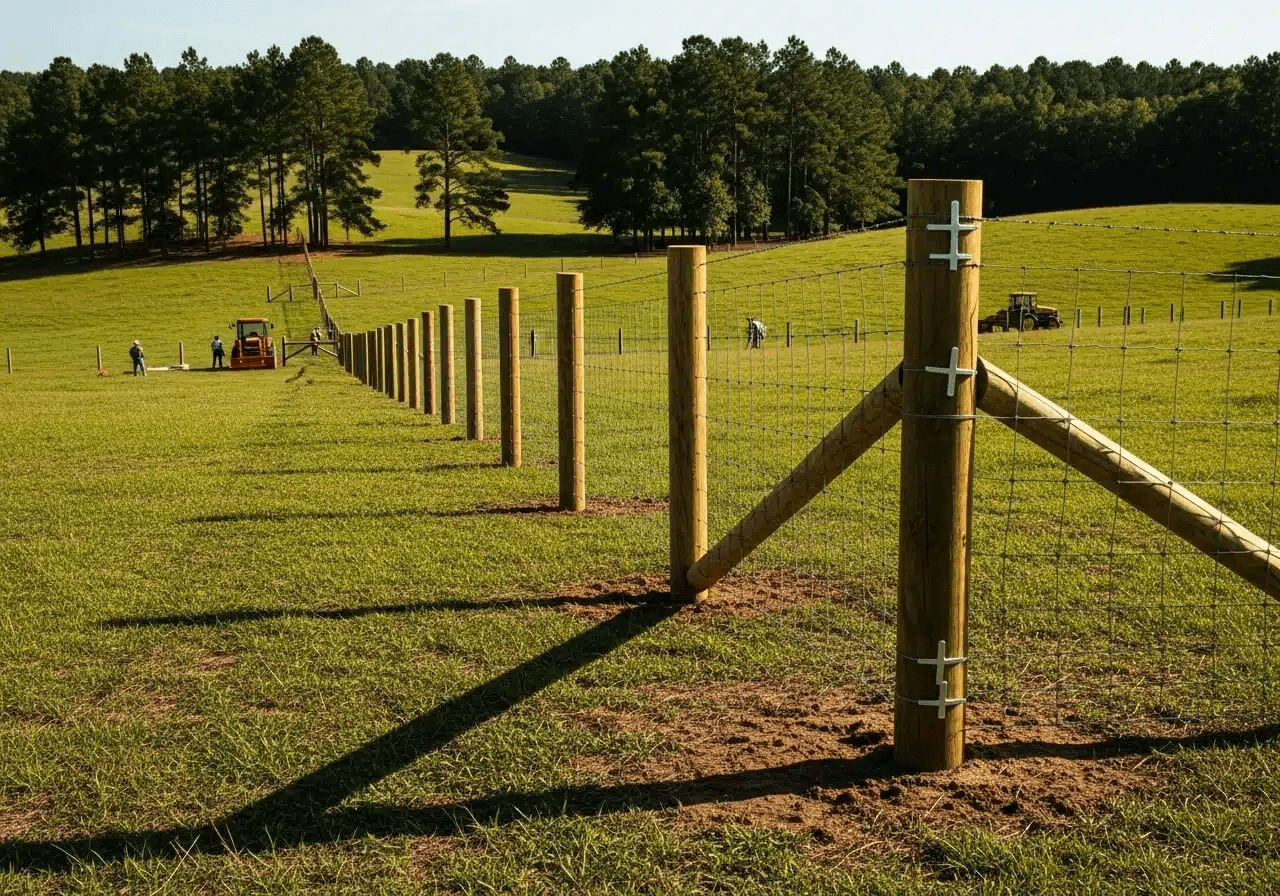

Brace corners correctly. Set 8 inch treated posts 3.5 to 5 feet deep and build H braces at every corner, end, and gate. Connect the main and brace posts with a horizontal brace and lock the assembly with a diagonal tension wire so it holds full line pull Stay-Tuff, 2025.

Set line posts and hang fabric. Install line posts at planned spacing, unroll woven wire along the outside, and fasten the starting tail to your first corner.

Tension and splice. Use a stretcher bar or come along for even pull. Reduce about half of the factory crimp in the horizontals to balance firmness and resilience. Splice rolls with rated sleeves or crimp connectors so joints match wire strength.

Add barbed wire and gates. After stapling the fabric, tension one or two top strands. Set staples so the barbed wire can move slightly with temperature changes. Hang tube or pipe gates on heavy hinge pins, and confirm the latch works cleanly with one hand.

Safety, briefly. Wear eye and hand protection when cutting or tensioning wire, hydrate in hot weather, and keep people clear of the stretcher zone.

Frequently Asked Questions

What height works best for woven wire with a barbed wire top?
A practical standard is 47 inch woven wire with one or two top strands. Overall height lands around 50 to 54 inches. This contains most cattle and aligns with common legal expectations in Alabama.

How much does a professionally installed fence cost in the Panhandle region?
Terrain and access drive price. Many ranchers see installed costs of about 4 to 7 dollars per linear foot, or roughly 20,000 to 30,000 dollars per mile for typical projects Tejas Ranch & Game Fence, 2025. DIY can cut labor, but quality materials and equipment rental still add up.

Do I need a permit in Alabama or Georgia?
Agricultural fencing in rural counties usually does not require a permit. Rules vary near towns, along highways, and in protected corridors. Call your county planning office before starting.
